PULL CORD SWITCH

Emergency stop rope pull switch for belt conveyors

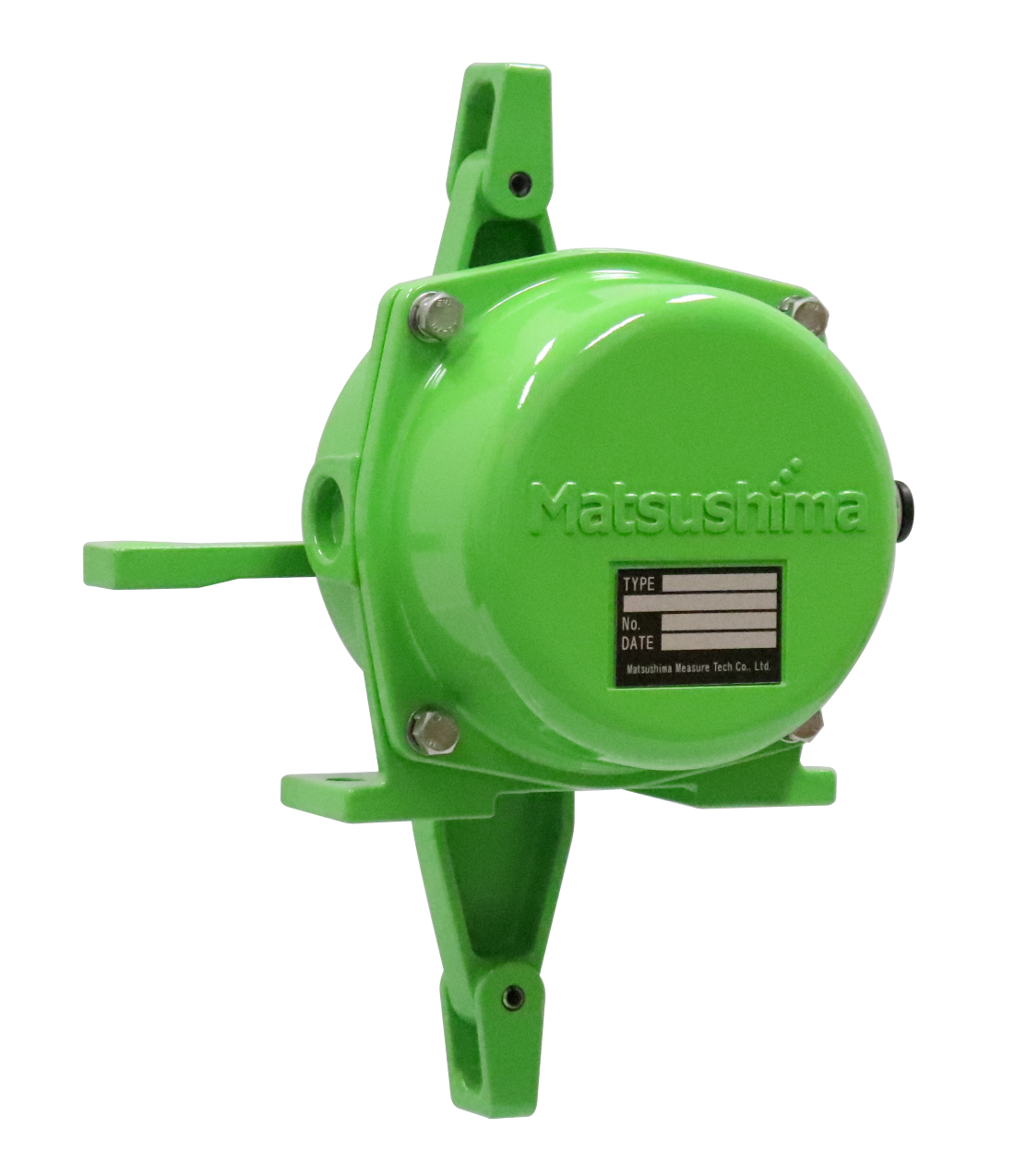

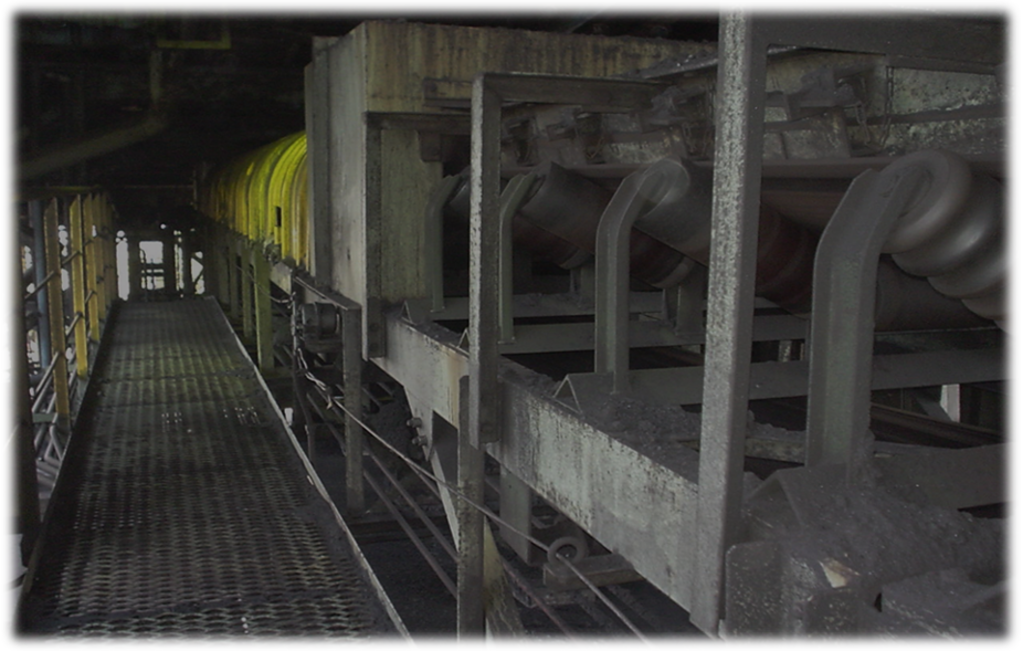

Pull Cord Switch is a switch for emergency stop when an accident occurs around belt conveyors and transportation machinery. Mainly used for belt conveyors that transport raw materials (ore, coal, lime, gravel, etc.) at production sites. Since 1975, it has been a favorite in the field for many years.

*Emergency stop switches are required to be installed on belt conveyors according to occupational safety and health regulations.

Advantages

  1. It can be used as an emergency stop device required by occupational safety and health regulations to prevent accidents resulting in injury or death to workers.

  2. Pulling the wire rope from anywhere on the conveyor can bring the equipment to an emergency stop.

  3. It is also effective for safety measures before work. If you operate the Pull Cord Switch while working around the conveyor, you will not accidentally start the conveyor. Serious accidents can be avoided.


\ Download or Request for quote /

Features of Pull Cord Switch

The main features of the emergency stope rope pull switch are:

1 unit covers 50m

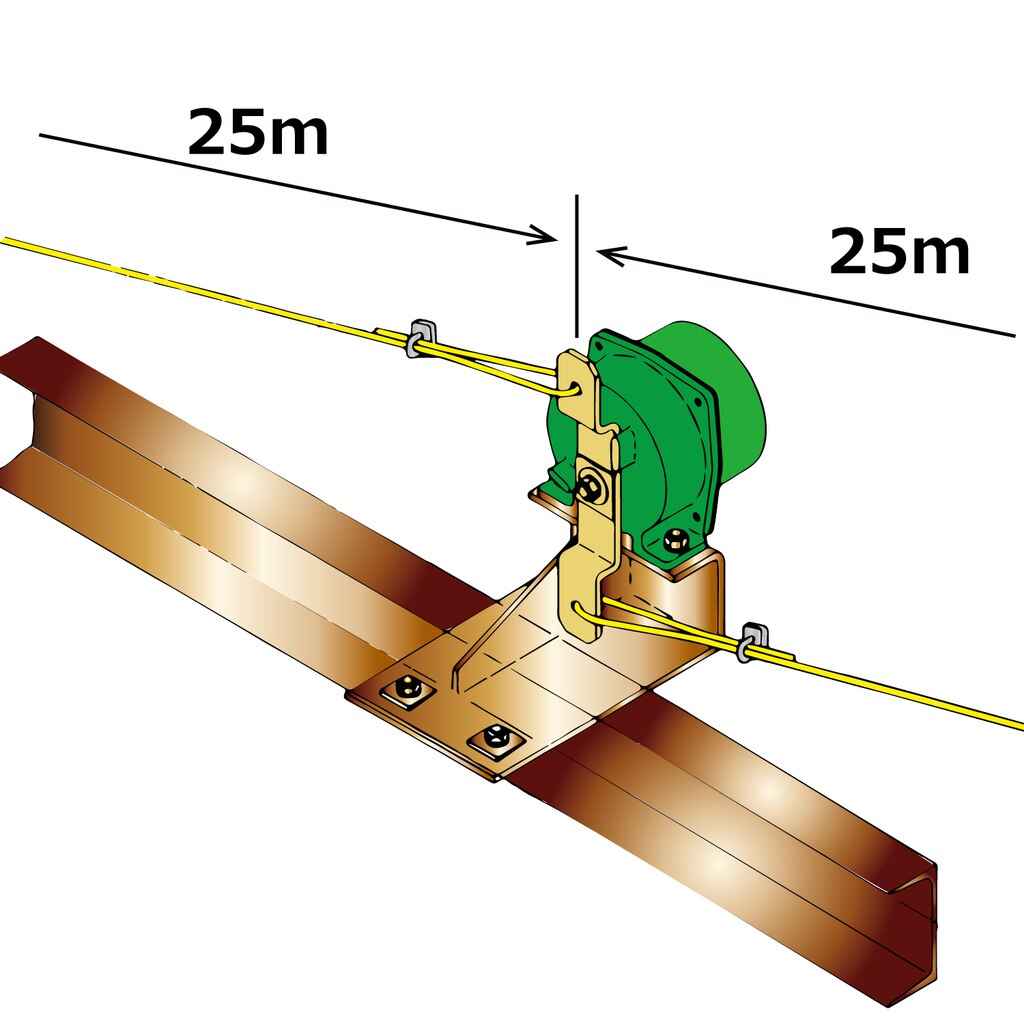

Connect 25m of wire rope to each end of the lever of Pull Cord Switch.

Install rope supports at regular intervals. For details, please refer to the instruction manual or contact us.

Abundant lineup

Depending on application, you can select "Automatic reset", "Manual reset", or "With operation display plate".

Furthermore, according to the usage environment, you can choose from "Weather proof type", "Flame proof type", and "Dust-ignition proof type".

Customizable

If it is difficult to use the standard specification, we can customize it according to the environment.

Examples: cold-resistant specifications, salt-resistant specifications, etc.

*For details, see the catalog and instruction manual.

Operating principle

If you connect wire ropes to upper and lower levers of Pull Cord Switch and attach wire ropes along belt conveyor, you can pull the wire rope from anywhere on the belt conveyor to activate the Pull Cord Switch and bring the equipment to an emergency stop.

How to use?

1.Determine
mounting position

Decide on an installation location that avoids falling ore from conveyor or a location subject to large vibrations or shocks.

2. Mounting

For explosion-proof areas, select explosion-proof specifications.

Provide a mounting base for Pull Cord Switch. It is recommended to install a cover in case of falling mines. Length of the wire rope for operation is up to 25m on one side. Install support brackets at intervals of 1 m so that wire rope does not sag.

3. Wiring

The contact signal is a dry contact. Avoid direct input to motors and sequencers, and use magnet conductors or relays.

4. Adjustment

No adjustment is required as it has been adjusted at the factory.

*For details, please refer to the instruction manual.



\ Download or Request for quote /

Model lineup

We have 9 lineups.

Specifications


Weatherproof



Flameproof type


Dust-ignition proof type

Action of Switch

\ Download or Request for quote /
